About MAN B&W Engine 5L16/24
RA Power Solutions was intimated by a shipping company based in Dubai regarding problem faced by them in thecrankshaft of MAN B&W 5L16/24. Our two technicians with onsite crankshaft grinding machine and necessary measuring instruments were sent on board the vessel at Kandla Port, India.
Following are the details of MAN B&W 5L16/24:
| S. No. | Crankpin Details | |
| 1. | Engine Make | MAN B&W |
| 2. | Engine Model | 5L 16/24 |
| 3. | Crankpin Diameter Standard | 130.00 MM |
| 4. | Crankpin Bearing Width | 56.00 MM |
| 5. | Place of Execution of Grinding of Crankpin | Kandla Port, India |
| 6. | Name of Shipping Company | Reputed Company from Dubai, UAE |

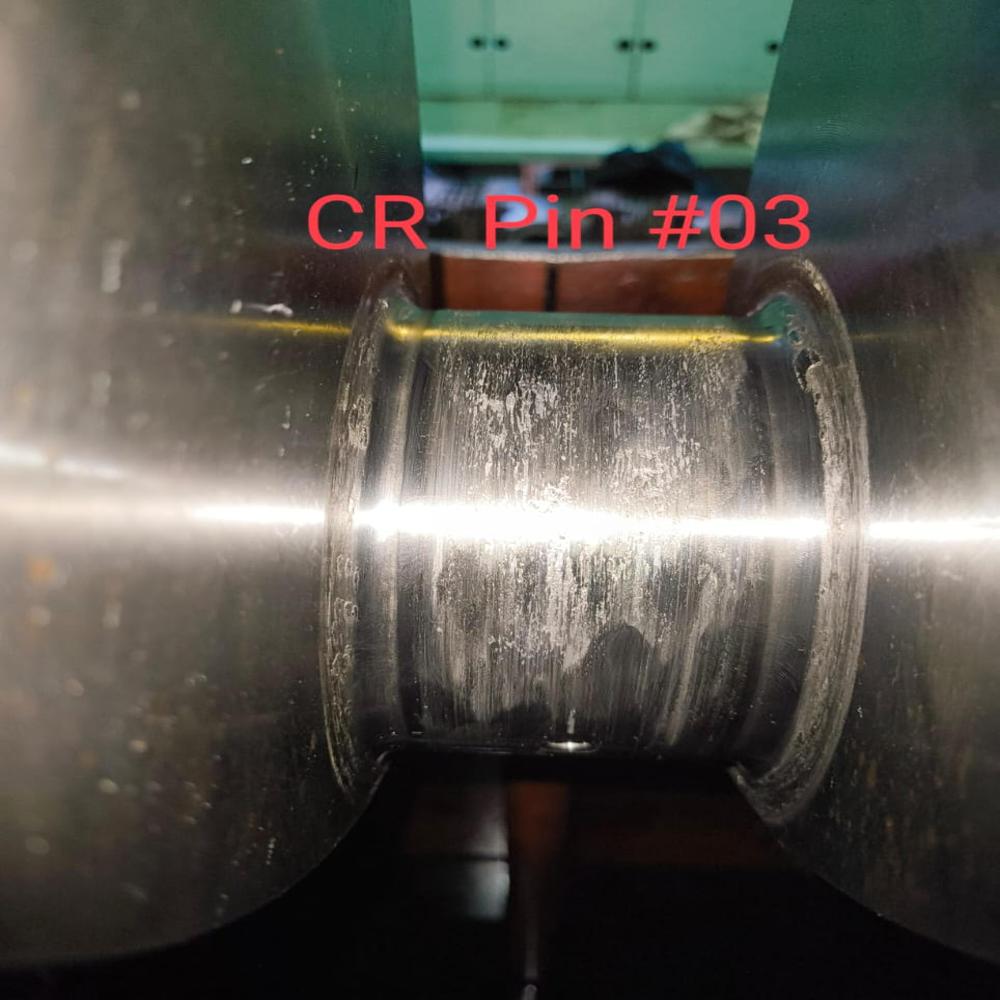

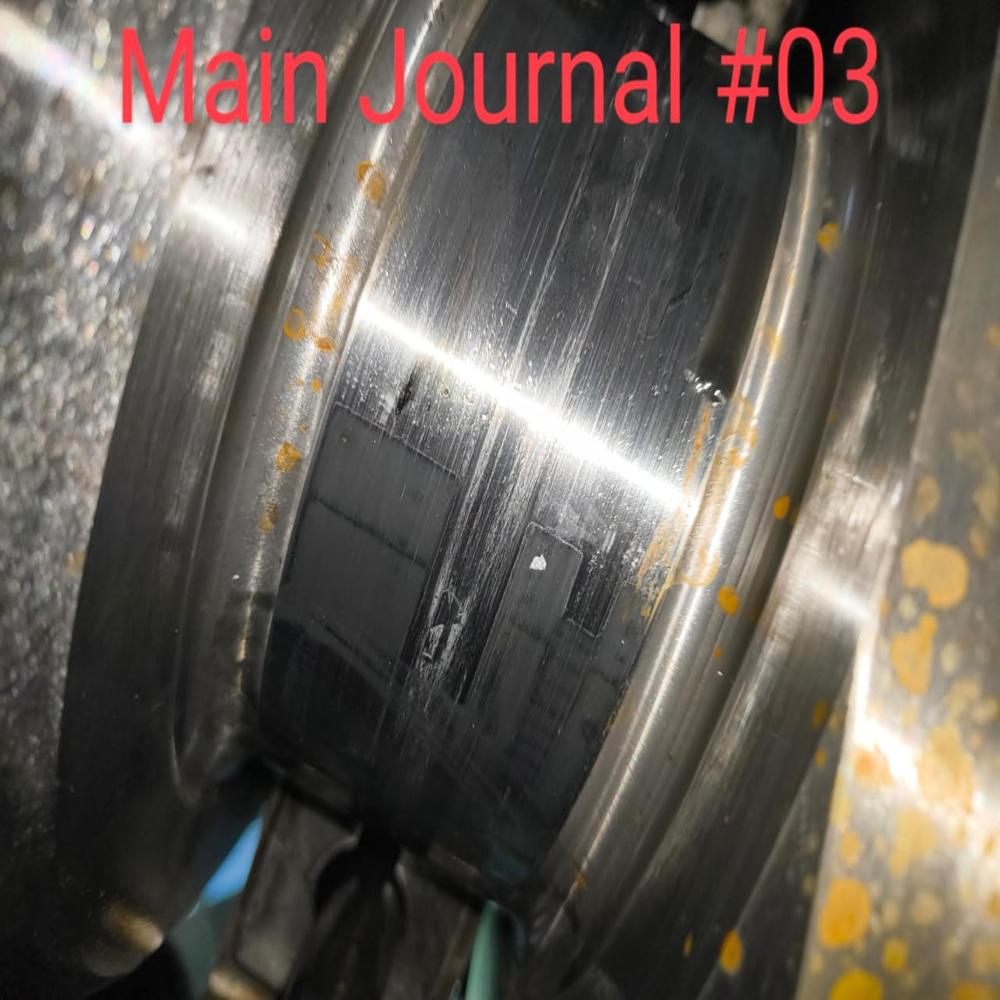

| CR Pin of MAN B&W 5L 16/24 Before Grinding | MAN B&W 5L16/24 Engine CR Pin Having Dent Marks andLine Marks |
Inspection and Repair Procedure of Crankshaft of MAN B&W Engine 5L16/24

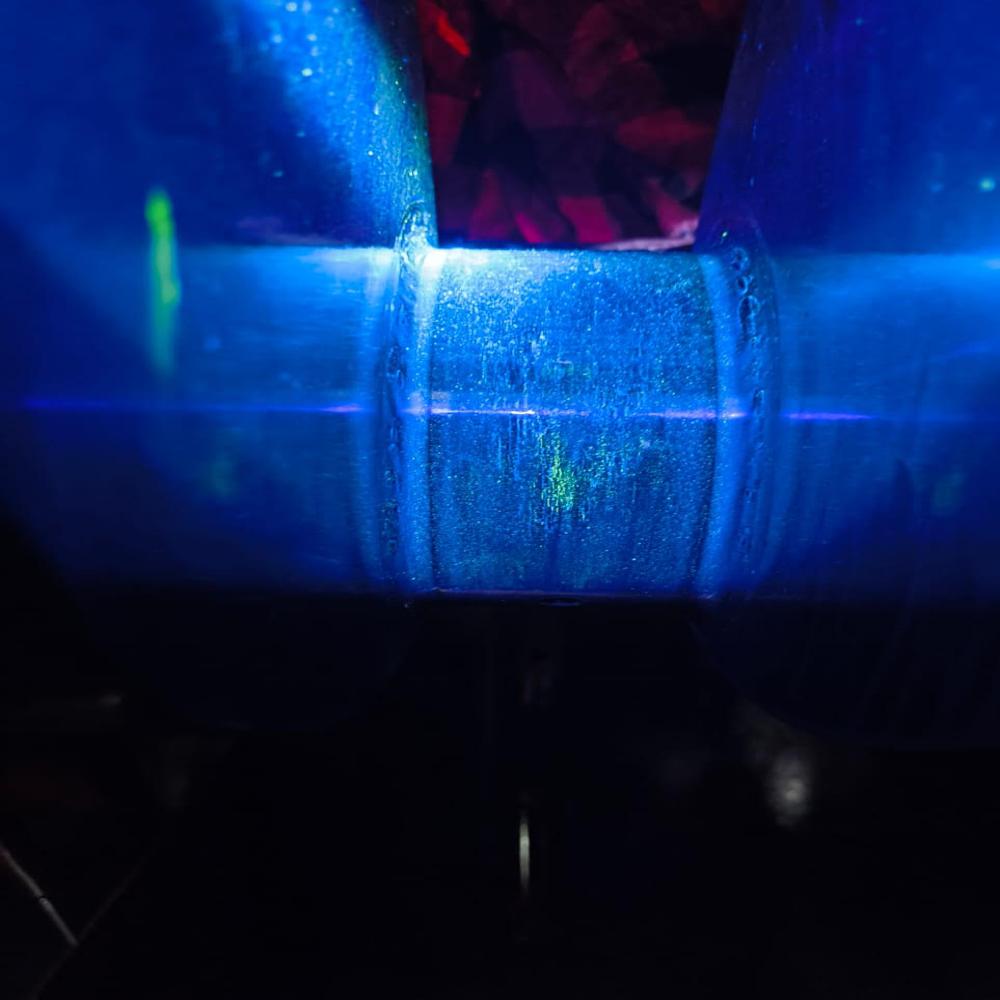

| MAN B&W 5L16/24 Crankshaft During MPI Inspection | MPI Test of Crankshaft of MAN B&W 5L16/24 Engine MPI Test of Crankshaft of MAN B&W 5L16/24 Engine |
i) The completeinspection of crankshaft, as per the protocol was done, which includes dimensional inspection for taper & ovality, hardness test, MPI for crack detection and visual inspection.
All other parameters were observed within limits, except excessive ovality was observed in case of all crankpins in the range of 0.10 MM to 0.40 MM.
This is considered to be very much on the higher side, as the tolerance for the crankpin diameter 130.00 MM is only 0.03 MM, as per the manual.
| Hardness Test of Crank Pin MAN B&W 5L16/24 Engine | Crankshaft MAN B&W 5L16/24 Engine Under Repair |
ii) The ovality report in brief of crankpin is pasted below
| Ovality of All Crankpins | Remarks | |
| CR PIN #01 | 0.38 MM | |
| CR PIN #02 | 0.10 MM | This Pin is already down by 1.5 MM |
| CR PIN #03 | 0.40 MM | |
| CR PIN #04 | 0.25 MM | |
| CR PIN #05 | 0.10 MM | |
iii) All the crankpins were ground according to the extent of ovality.
iv) The bearings of undersize was supplied by RA Power Solutions.
v) The Engine was commissioning in presence of our technicians and performance was found satisfactory.
| Crankshaft After Polishing of MAN B&W 5L16/24 Engine | Crankpin of MAN B&W 5L16/24 Engine After polishing |
Advanced Engine Design and Performance
The MAN B&W 5L16/24 engine integrates cutting-edge engineering with a robust mechanical governor and efficient four-stroke operation, ensuring durability and performance in marine settings. Its 440 kW output and effective cooling via fresh water flow rate of 5.2 m/h are key attributes, making it ideal for vessels requiring reliability and compliance.
Efficient Lubrication and Cooling System
With a lubrication system capacity of 128 litres and a fresh water cooling method, the engine maintains optimal temperatures and reduces wear, ensuring consistent operation even under heavy loads. This system helps in maintaining minimum oil pressure of 2.5 bar and maximum exhaust temperatures of 430C, increasing engine longevity.
Environmental Responsibility and Compliance
Meeting IMO Tier II emission standards, the 5L16/24 engine is designed to reduce harmful emissions while maintaining high efficiency. This feature is crucial for operators aiming to comply with global maritime regulations and minimize their environmental footprint.
FAQs of MAN B&W Engine 5L16/24:
Q: How is the MAN B&W 5L16/24 engine started?
A: The MAN B&W 5L16/24 utilizes an electric starting system, providing reliable and efficient ignition for quick engine startup, making it suitable for both frequent and emergency operations on vessels.Q: What is the cooling method used in this engine and why is it beneficial?
A: The engine employs a fresh water cooling system with a flow rate of 5.2 m/h, which ensures stable operating temperatures and protects components from overheating, thereby extending the engines service life.Q: When should the lubrication system be checked or maintained?
A: Regular checks should be performed according to the manufacturers schedule to maintain the 128-litre lubrication system. Monitoring minimum oil pressure (2.5 bar) is vital to prevent wear and ensure smooth operation.Q: Where is the MAN B&W 5L16/24 engine commonly used?
A: This engine is primarily installed in marine vesselssuch as commercial ships and tugboatswhere reliable power, compact dimensions, and compliance with emission standards are essential.Q: What emission standard does the MAN B&W 5L16/24 comply with?
A: The engine adheres to IMO Tier II emission standards, helping vessels meet international marine environmental regulations and support sustainable operations.Q: How does the mechanical governor type aid engine performance?
A: The mechanical governor precisely regulates fuel injection and engine speed, ensuring smooth, consistent running and optimal power output under varying loads.Q: What are the key benefits of choosing the MAN B&W 5L16/24 engine?
A: This engine offers dependable performance, fuel efficiency (187 g/kWh), compliance with global standards, and low maintenance needs, making it a favored choice for marine professionals.
