Send InquiryMAN STX 18V28/32S Crankshaft Repair
Price 10000.0 INR/ Unit
MOQ : 1 Kilograms
MAN STX 18V28/32S Crankshaft Repair Specification
- Max Engine Power Capability
- Up to 7200 kW
- Repair Certification
- Class Approved (Available upon request)
- Repair Service Type
- Onsite and Workshop
- Inspection Method
- Ultrasonic, Magnetic Particle and Dye Penetrant Testing
- Surface Finish
- Polished
- Machining Tolerance
- Up to 0.01 mm
About MAN STX 18V28/32S Crankshaft Repair

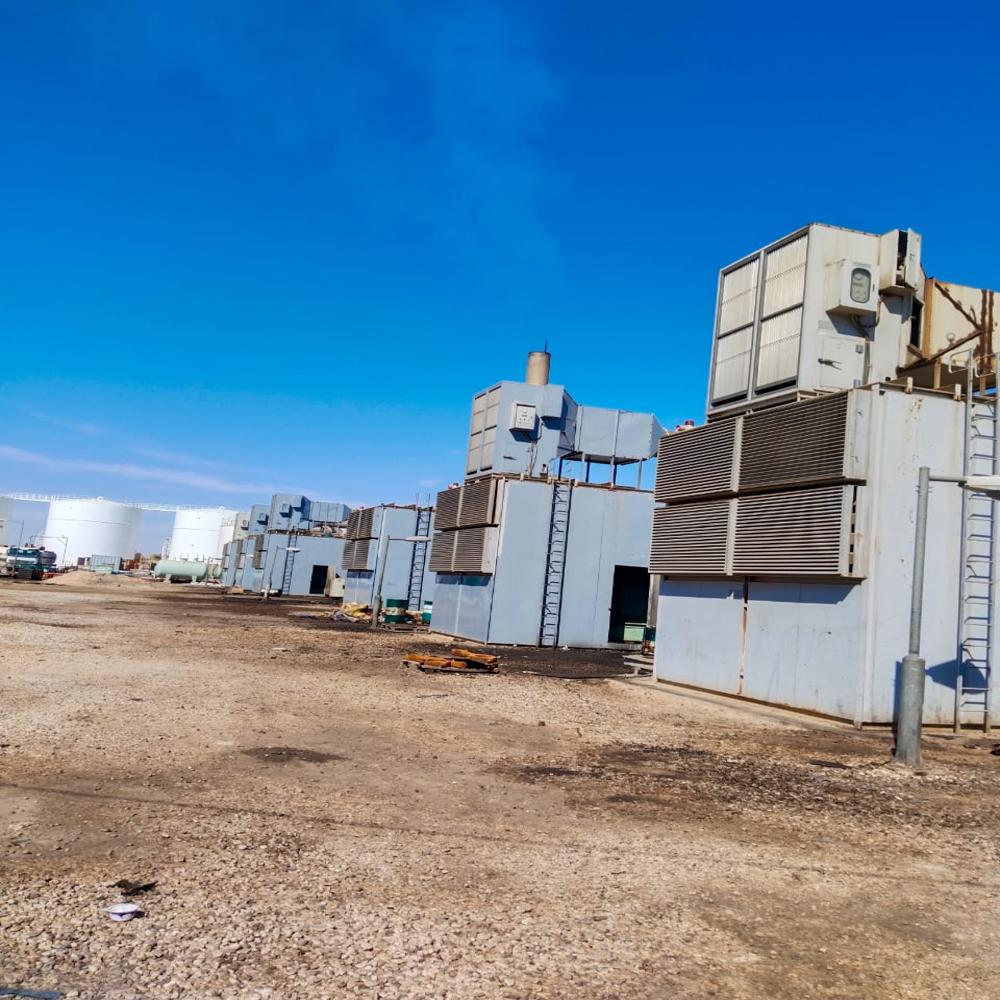

A Diesel Power Plant in Iraq has multiple MAN STX 18V28/32S engines generating electrical power, this power is supplied continuously for residential and commercial use, and the engines operate continuously.
The Power Plant faced multiple problems in the crankshaft of MAN STX 18V28/32S engines. The details are pasted below:
| S. No. | Crankpin Details | |
| 1. | Engine Make | MAN STX |
| 2. | Engine Model | 18V28/32S |
| 3. | Crankpin Diameter Standard | 230.00 MM |
| 4. | Crankpin Bearing Width | 180.00 MM |
| 5. | Place of Execution of Grinding of Crankpin | Power Plant, Iraq |
Brief Description of Problem Faced in Crankshaft MAN STX 18V28/32S
- In Most cases, the crankpins, having a standard diameter of 230.00 MM and a bearing width of 180.00 MM, developed excessive ovality. This ovality in the crankpins was causing repeated failure of the crankpin bearing.
- Deep Bearing Line marks were observed on crankpins, which may be, due to non-replacement of crankpin bearings after the hours of operations stipulated in the maintenance manual of the manufacturer. The use of poor quality lubricating oil can be the other reason for development of Line Marks.
- In case of a few crankpins, the seizure of the bearing was observed.
- Visually, the radius fillet and lubricating oil hole were found maintaining the original profile.
Action Taken by RA Power Solutions to Repair the Crankshaft MAN STX 18V28/32S

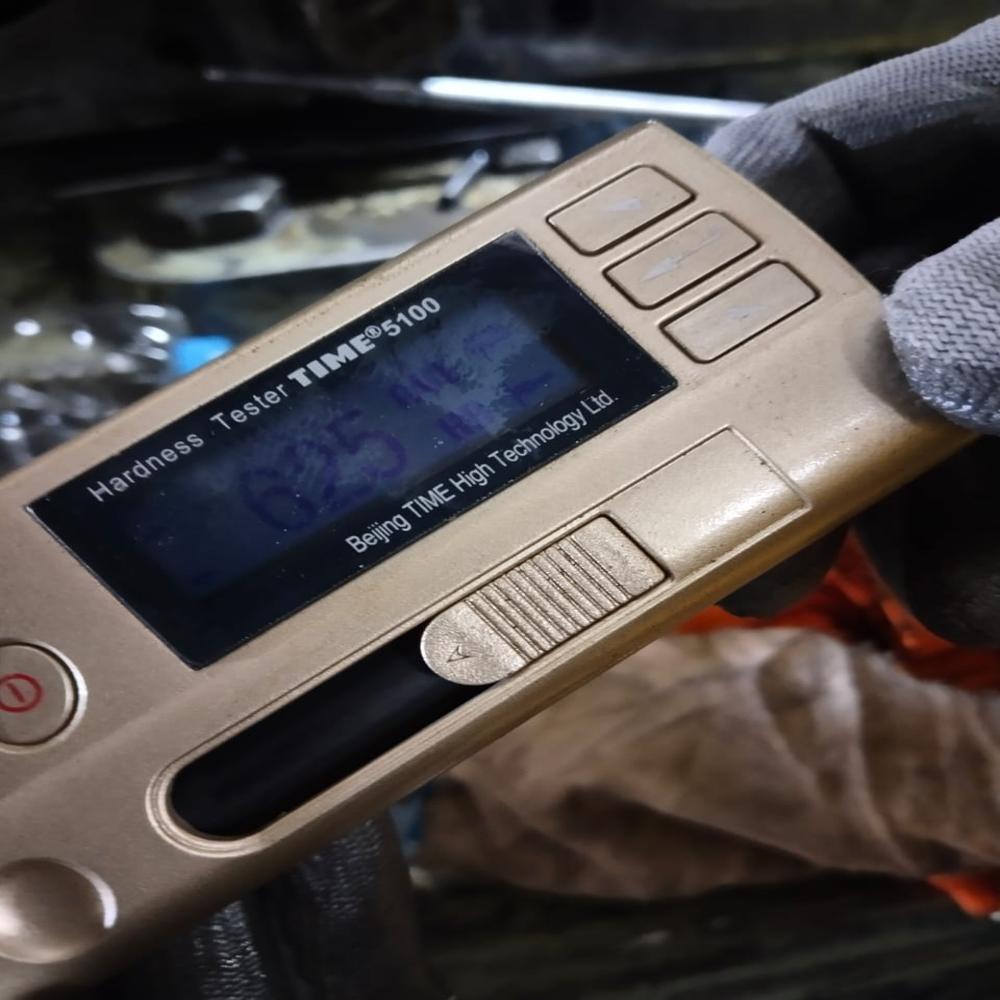

- RA Power Technicians followed the protocol of inspection in which the damaged crankpins were subject to dimensional check, Crack Detection by MPI, Hardness Check etc. The pre Inspection reports were prepared.

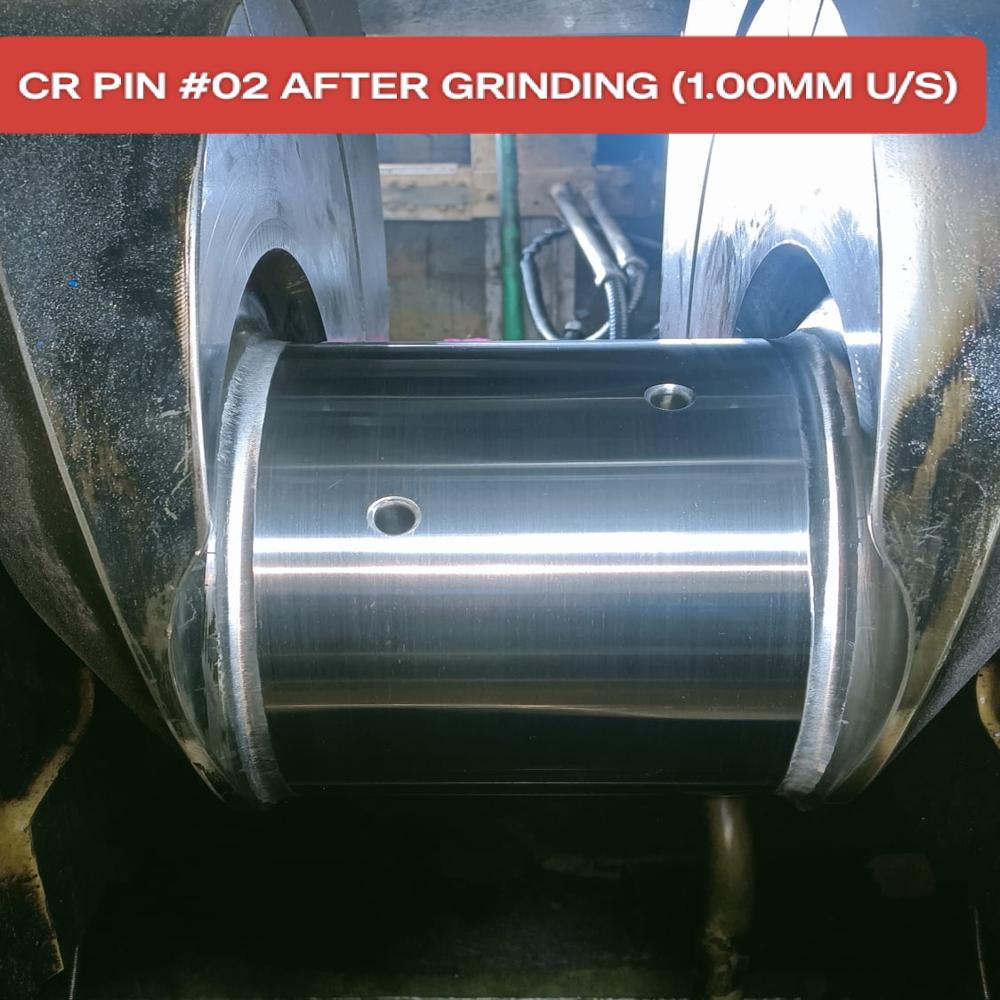

- The grinding of the crankpins was successfully executed. The diameter of some of the crankpins was reduced by 0.5 MM and in some rare cases we have to grind to the undersize of 1.00 MM.
- The onsite crankshaft grinding machine developed and manufactured by RA Power Solutions is of latest design, it maintains the tolerance within 0.02 MM (20 Microns after grinding). The surface finish is of very high level 15 RA Value or less, which is highly recommended for long life of the bearings and crankshafts.
Onsite Crankshaft grinding and repair services offered by us are in a wide range of circumstances, whether it is a ship in high seas to a power plant/Cement Plant in a remote area. All the crankshaft grinding services offered by RA Power are guaranteed for the satisfactory performance of the crankshaft after repair of the Crankshaft and diesel engine.
For more information on onsite crankshaft repair, grinding of crankshaft, and crankshaft polishing please email us at rajshahani@rapowersolutions.com, or info@rapowersolutions.com, or call us at +91 9582647131 or +91 9810012383.
Comprehensive Onsite and Workshop Repairs
Our team offers flexible repair solutions for MAN STX 18V28/32S crankshafts, operating either at your location or in our fully equipped workshop. Both approaches utilize state-of-the-art techniques to restore functionality and extend service life for high-power engine applications.
Advanced Inspection and Finishing
We deploy ultrasonic, magnetic particle, and dye penetrant testing to detect flaws and ensure structural integrity. Following meticulous inspection, the crankshaft surfaces are polished to optimize performance, adhering to precision machining tolerances as low as 0.01 mm.
Certified Repairs with Industry Approval
Class-approved certification is available, providing assurance that all repairs meet or exceed regulatory requirements. This certification, combined with our technical expertise, supports safe operation and reliability for engines with up to 7,200 kW of power.
FAQs of MAN STX 18V28/32S Crankshaft Repair:
Q: How is the MAN STX 18V28/32S crankshaft repair process conducted onsite and at the workshop?
A: Repairs are performed either at the clients site or in our advanced workshop, using precision machining and specialized equipment. Both settings ensure thorough inspection, skilled restoration, and high-quality surface finishing for optimal crankshaft performance.Q: What inspection methods are used to assess crankshaft condition during repair?
A: We utilize ultrasonic testing, magnetic particle inspection, and dye penetrant methods to detect surface and subsurface flaws, guaranteeing comprehensive evaluation before, during, and after repairs.Q: When should a crankshaft from a MAN STX 18V28/32S engine be repaired?
A: Crankshaft repair is recommended when damage, abnormal wear, or performance issues are observed, or during scheduled maintenance intervals, to prevent engine failure and prolong operational life.Q: Where can you access this crankshaft repair service?
A: The service is available globally through onsite visits and in our dedicated workshop facilities, making it convenient for marine and industrial customers wherever they operate.Q: What is the typical process for repairing a MAN STX 18V28/32S crankshaft?
A: The process includes initial assessment using advanced inspection techniques, precision machining to restore tolerances up to 0.01 mm, polishing for a refined surface finish, and optional class-approved certification upon completion.Q: How does polished surface finish and tight machining tolerance benefit engine performance?
A: A polished surface and precise machining improve wear resistance and minimize friction, resulting in smoother operation, enhanced efficiency, and extended lifespan for high-power engines.Q: Is repair certification available and what are its advantages?
A: Yes, class-approved repair certification is available upon request, offering documented compliance with industry standards. This assures reliability, safety, and regulatory acceptance for repaired crankshafts.
